Part Number: PRG210

Please Note: This Rear Is Designed To Work With The Factory 4 Channel Traction Control.

Comes with the 3 channel ABS provision installed on the rear end OPRG13

3 Channel ABS
Reluctor ring is located on differential
Special Strange ABS sensor included OBRS30

Fits:
1993-2002 Chevrolet Camaro
1993-2002 Pontiac Firebird
1993-2002 Pontiac Trans Am

S60 With 35 Spline Alloy Axles & 35 Spline S-Trac Differential

Strange Dana 60 Complete Rear End – Less Brakes
35 spline axles & helical gear differential
No additional charge for custom width

• Aftermarket torque arm may need to be modified

• Stock driveshaft will need to be replaced

Features
• OEM lower control locations with multiple height mounting holes
• Additional holes enhances chassis tuning abilities
• Factory .520″ pinion offset to passenger side

Includes
• S60 housing
• Alloy 35 spline axle package
• 4 3/4″ bolt circle
• Choice of wheel stud kit

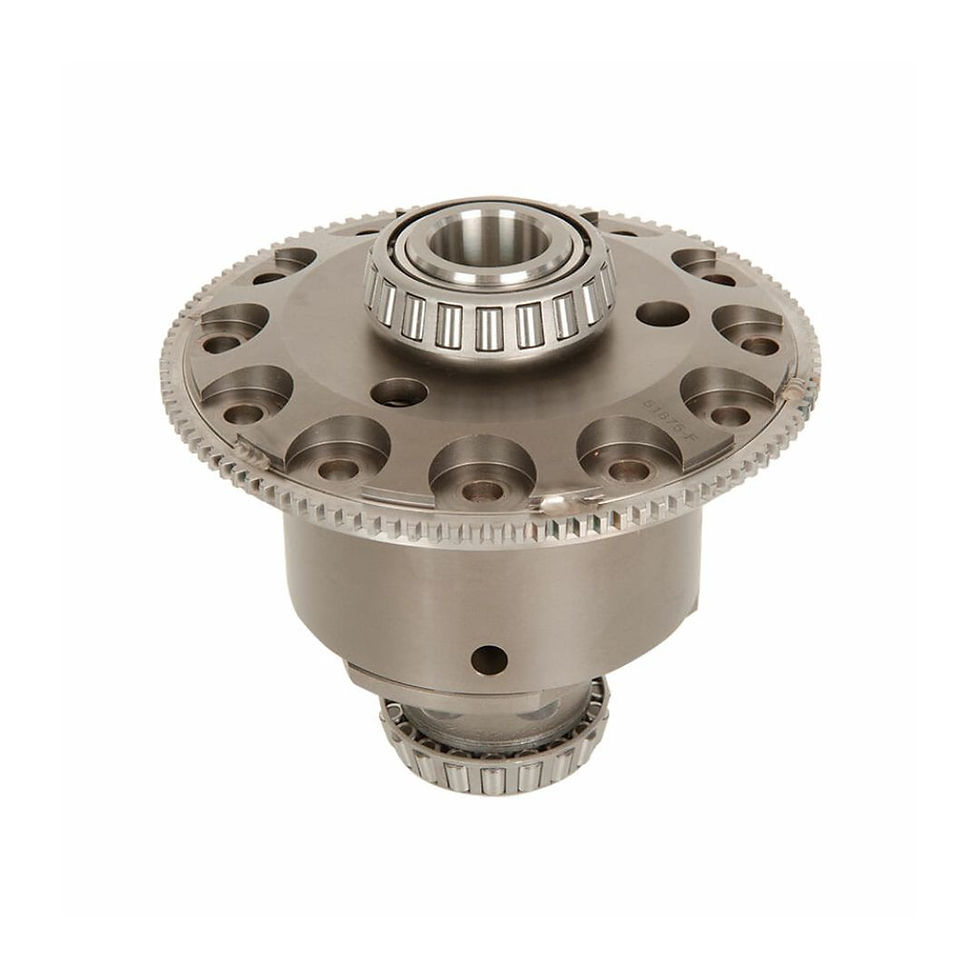

• 35 spline S-Trac differential
• Choice of gear ratio
• S-Series pinion yoke with U-bolts
• Dana / Spicer steel cover
• Extended sway bar link kit
• Professionally welded and assembled
• Crated to protect your investment

This rear end comes with GM style bolt-in housing ends installed. They are designed to work with LT or LS syle disc brakes

Please note: If you have LT brakes you will be required to buy disc brake brackets separately.

Gear Lube:
DO NOT USE SYNTHETIC GEAR OIL
Will adversely affect unit operation and void warranty
Use Only Petroleum Based 85W-140 Gear Oil

3 Channel ABS
Reluctor ring is located on differential
Special Strange ABS sensor included OBRS30

Want to do something custom for brakes? Contact us! 260-301-2424
