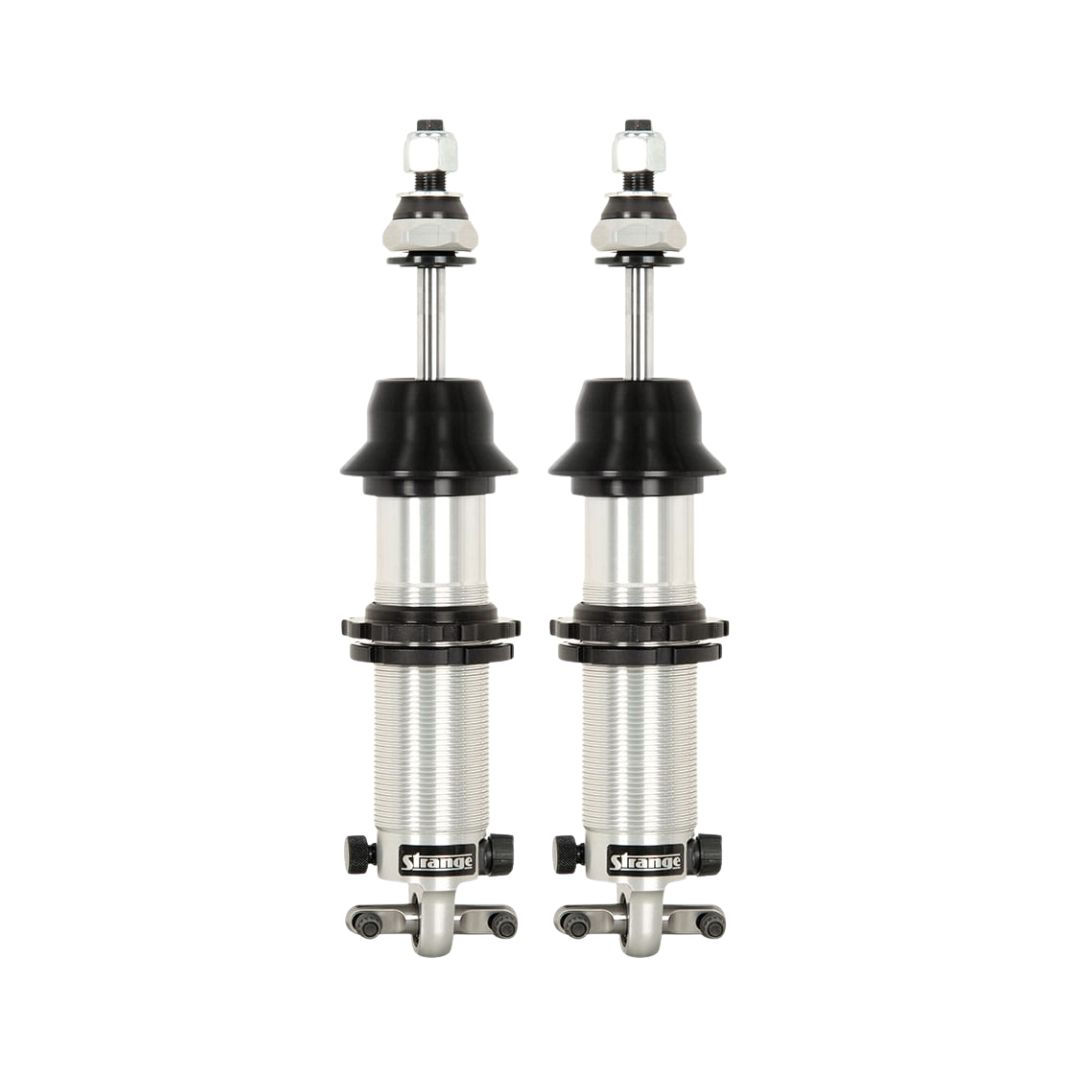

Strange Corvette C5 & C6 Front Coil-Over Shock
Double Adjustable
$385.00
Part Number: S5021

Double Adjustable Front Coil-Over Shock
1997-2013 C5 / C6 Corvette
Sold as Pair
Features
• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick changes for varying conditions
• Rotating knobs clockwise stiffens valving
• Coil-over design simplifies changes to ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved
• Accepts 10″ x 2.50″ I.D. spring
Upper & Lower Spherical Bearings
• Top stud and bottom T-bar allowed to pivot during shock travel
• Eliminates binding common with rubber bushings
• Ensures smooth and consistent operation
Includes
• Upper & lower spring seats
• Lower seat jam nut
• Upper stud with integral spherical bearing
• Lower spherical ball bearing
• Mounting hardware
Dimension A
• 17.32″ extended
• 12.38″ compressed
Recommended Spring Rate
• 400 lbs
• Consult your chassis builder
Adjustments For Drag Racing
Softening extension allows for more weight transfer
Stiffening compression further aides in weight transfer
Adjustments For Performance Street & Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics
