2 Day Build Time

Free Shipping



Part #: A3512RAPT
Mfg: Ford - OEM #: CL3Z-4234-A & CL3Z-4234-B

Model: Ford F-150 RAPTOR
Year: 2012, 2013, 2014, 2015, 2016, 2017, 2018
Rear Type: 9.75"
Length: 36 5/8" & 38 1/4"
Bolt Pattern: 6 X 135mm
Stud Type: 14mm
Spline Count: 35 (C-Clip Style)
H Dimension, Bearing Seat Diameter: 1.705"
A Dimension, Pilot: 3.540"



Moser Custom 1541H Alloy Axles are without question the best in the business. We begin with premium quality alloy steel that is forged in Moser designed tooling, induction heat-treated to optimize torsional strength, and 100% magnafluxed. This process not only gives the axle the strength of a race only axle, but makes it ideal for street use as well. The axles are specifically designed and engineered to take the stress and strain of both racing and high performance street uses. Our axles are available in any spline count and can be made to fit virtually any rear end setup. All popular bearing sizes and bolt pattern combinations are available. If your future plans call for a narrower rear, Moser Custom Alloy Axles can be shortened and resplined to fit your needs and bolt pattern changes can also be made.



Need to narrow these axle? Want another bolt pattern? Need a different spline count? Want a smaller hub to fit custom disc brake? Need the flange machined down? Want to order a single axle? Contact us if you have questions or need to revise these specifications. 260-301-2424



Check out our YouTube channel for more information regarding these axle specification. We cover each dimension one at a time in the series "9" Ford - The Complete Rear End."

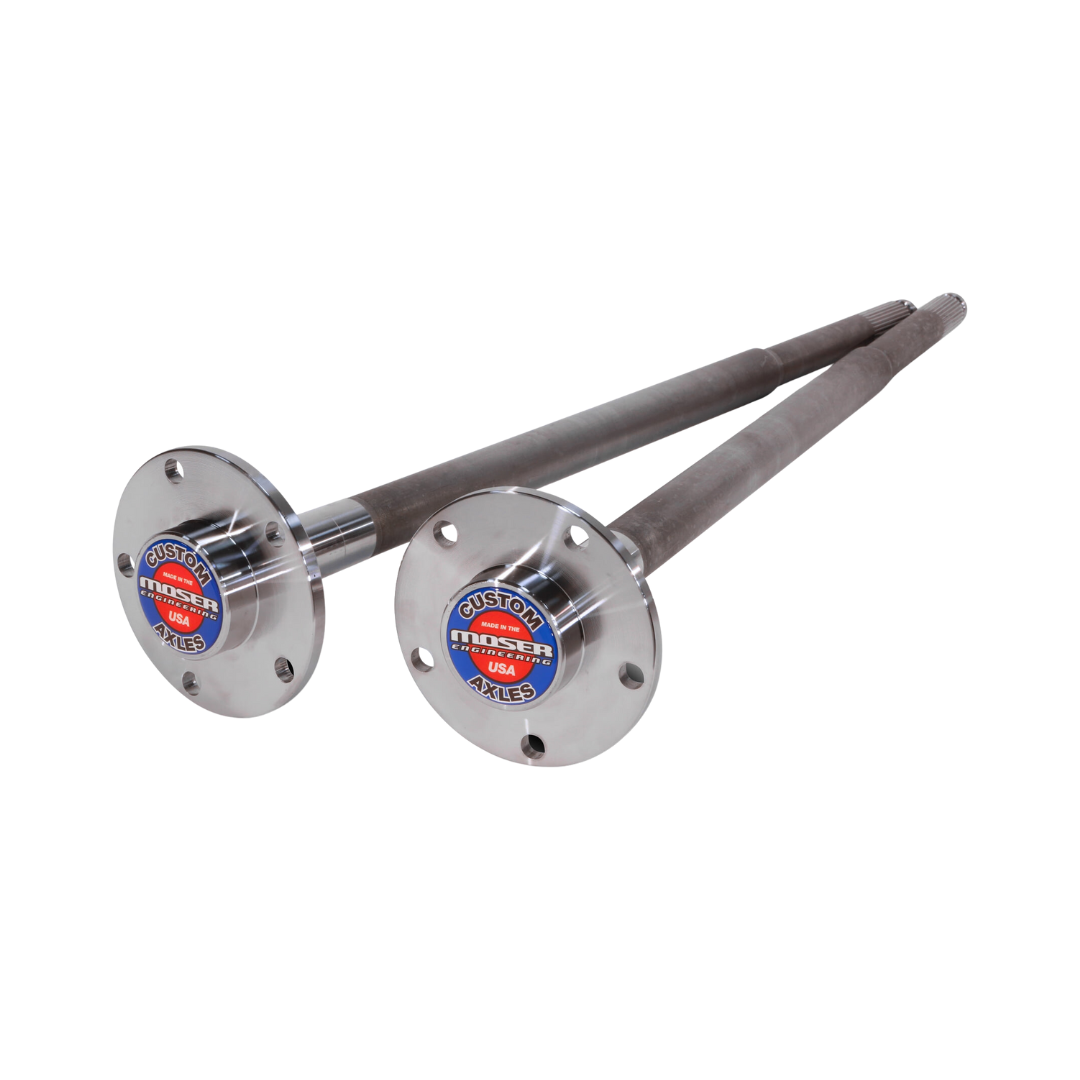

2012-2018 F150 Raptor Axles, 35 Spline C-Clip Axles, Moser Engineering A3512RAPT

$644.00Price
